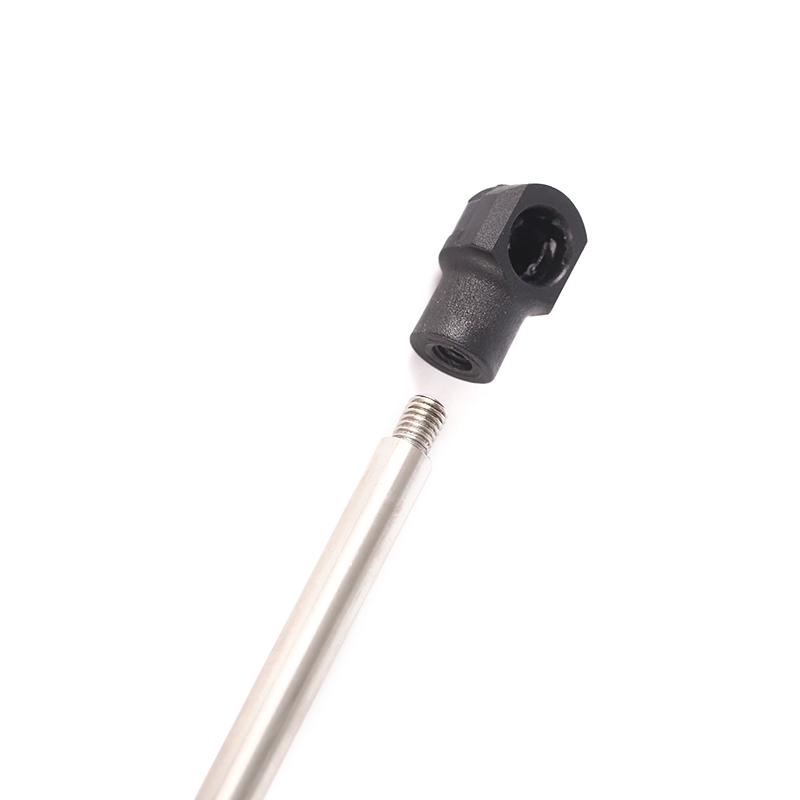

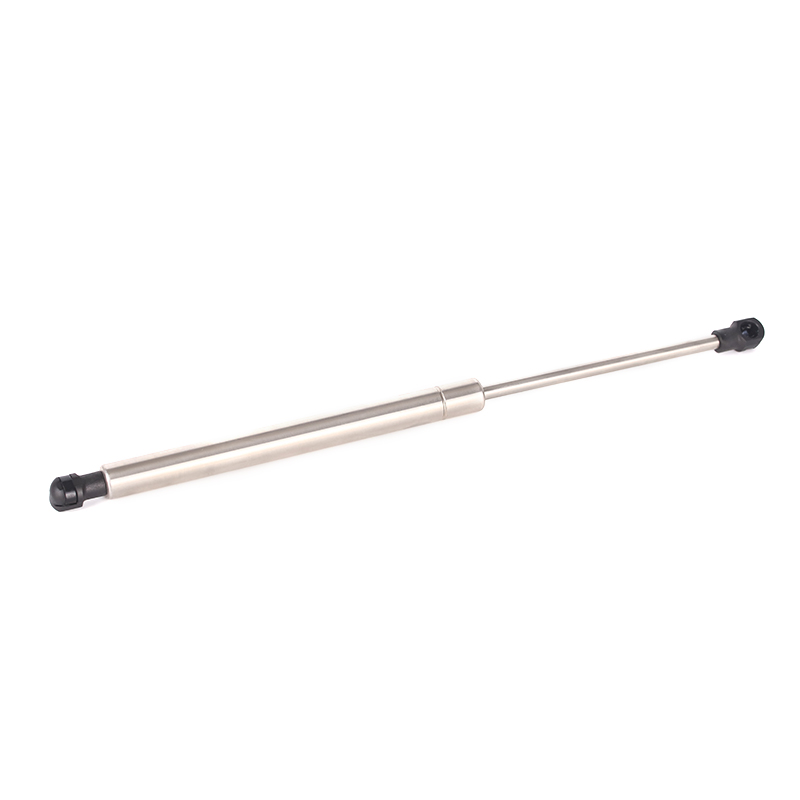

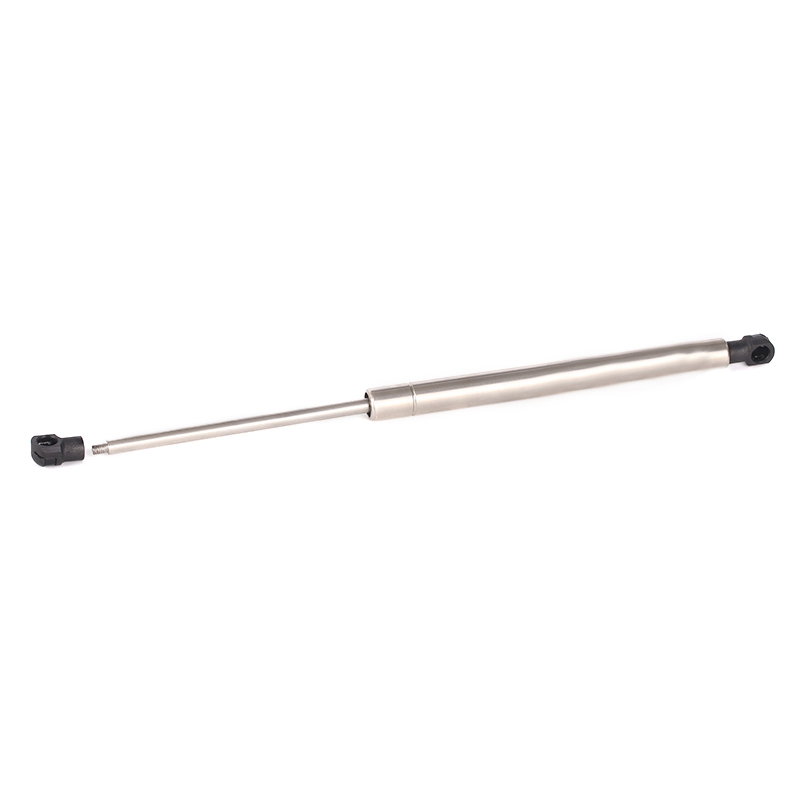

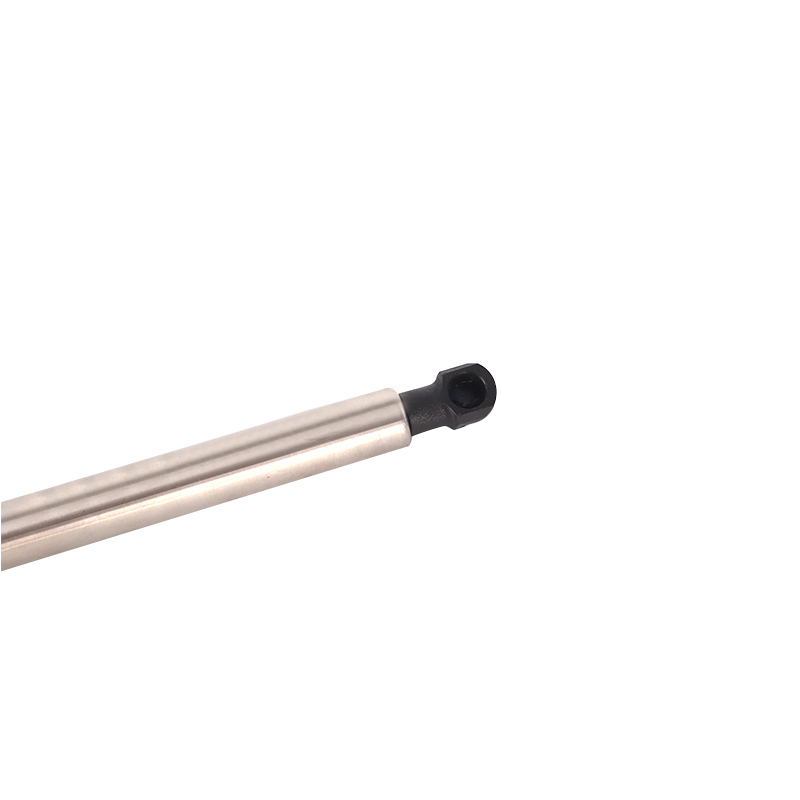

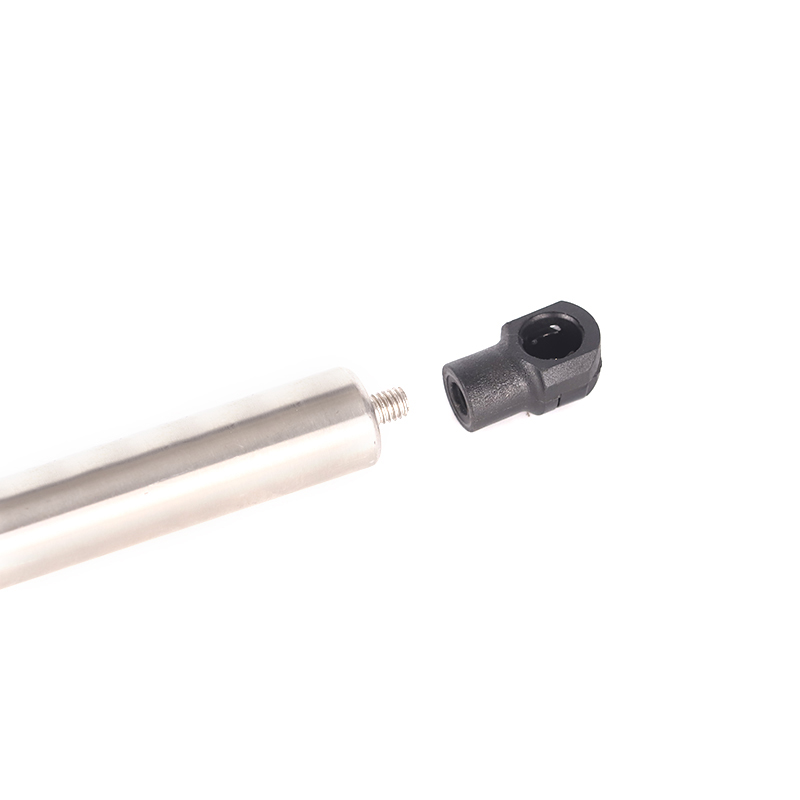

304 Stainless Steel Lift Gas Spring with KOREAN Plastic Joint

304 Stainless steel gas spring for machinery
1. raw material is SUS 304;
2. long time salt spray test time;
3. much longer lifetime and cheaper price;
4. no oil leakage,no gas leakage;
5. accept specification customize;
6. supply design support;
7. fast delivery time;
8. A variety kinds of connectors for selection.

Online inquiry

Previous Next

Detailed content Specification parameter Product packaging

Product Information:

Product Name:	304 Stainless Steel Lift Gas Spring with KOREAN Plastic Joint
Piston Rod Treatment:	Chrome-plated surface treatment
Piston rod Material:	304 Stainless steel
Tube Material:	304 stainless steel precision seamless steel tube
Specification:	Can be customized
Gas type:	100% Nitrogen
Usage:	Food machine,recreational vehicle (RV),yacht,medical equipment
Surface treatment:	spray painting for cylinder, chrome plating for piston rod.
Operating Temperature Range:	-15~+80ºC as standard,-50~+80ºC or -15~200ºC available
Warranty	Usually 30,000cycles or 2 years or be negotiated
Place of Origin:	Anhui, China
Loading port:	Shanghai,Ningbo,Qingdao,or be negotiated
Cetification:	IATF16949

Specificaiton For Choice:

The specification for your information,all the sizes can be customized according to customer's real project.

Specification	Stroke S (mm）	Extended length L(mm)	Force F1(N)
YQ6-15-S-L-F1N	10-50	2S+35	30-400
	51-100		30-350
	101-150		30-300
	151-200		30-200
YQ8-18-S-L-F1N	10-200	2S+45	50-700
	201-320		50-600
	321-400		50-500
YQ10-22-S-L-F1N	10-200	2S+50	100-1150
	201-300		100-900
	301-450		100-700
YQ12-25-S-L-F1N	10-750	2S+55	200-1500
YQ14-28-S-L-F1N	10-750	2S+55	300-3000

Packaging & Delivery & Shipping

Packaging:	1 piece/polyethylene bag, 50 pieces per box, 30 boxes per pallet,or be negotiated
Delivery time:	2days for samples,10days for 3,000pcs
Delivery term:	EXW & FOB & CFR & CIF & DDU
Shipping port:	Normally Shanghai,Ningbo
Shipment:	Our current shipping agent or your appointed agent
Transportation:	Samples by express Within 100kgs,recommand shipping by air Mass production,better shipping by sea
